How to Handle a Phone with a Broken Microphone (Callers Can't Hear You): Step-by-Step Diagnosis and Repair Workflow for Shops

9/20/2026· 4 min read

How to Handle a Phone with a Broken Microphone (Callers Can't Hear You): Step-by-Step Diagnosis and Repair Workflow for Shops

A customer walks in saying "people can't hear me on calls" — and that single symptom can point to a clogged mesh, a failed mic, a software glitch, or a board-level fault. This workflow helps your techs isolate the cause fast so you quote accurately and fix it once.

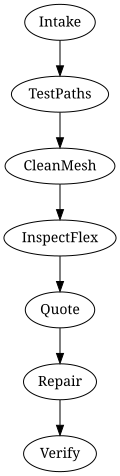

Process overview
Process overview

Start With the Right Questions at Intake

Before any tool comes out, pin down the symptom. "Nobody can hear me" is not a diagnosis.

  • Which mic fails? Speakerphone, earpiece calls, video recording, or voice memos all use different microphones.
  • Did it start after a drop, a liquid spill, a repair, or an update?
  • Does a case, screen protector, or screen replacement cover the mic port?
  • Does the customer use a headset or Bluetooth device that may be hijacking audio input?

Log the answers on the ticket. They narrow the search before the phone is even opened.

Rule Out the Cheap Causes First

Most "broken microphone" tickets are not broken microphones.

  1. Check the mic mesh. Lint, pocket dust, and case debris block the primary mic port. A soft brush and low-pressure air clear many of these.
  2. Test with a known-good recorder. Record a voice memo, then play it back on another device. Test speakerphone and earpiece calls separately.
  3. Disconnect accessories. Unpair Bluetooth, remove wired headsets, and check that no app is holding the mic.
  4. Check permissions and settings. A denied mic permission or a noise-cancellation setting can mimic hardware failure.
  5. Boot into safe mode or test after a reset of settings. If the mic works there, an app or setting is the culprit.

If the mic is clean, unobstructed, and still silent across every app, move to hardware.

Isolate Which Microphone Is Failing

Modern phones carry several mics: primary (bottom), secondary (top or rear, used for noise cancellation), and sometimes a third near the camera. Each has its own port and flex.

  • Primary mic dead, speakerphone works: suspect the bottom mic or its flex.
  • Speakerphone dead, earpiece calls fine: suspect the secondary mic.
  • Both dead: suspect a shared flex, connector, or audio IC.
  • Video audio muffled but calls fine: suspect a blocked port on the camera-side mic.

Document which mic fails on the ticket — it drives the parts you order and the time you quote.

Open It Up and Inspect

With the device powered down and discharged:

  • Inspect mic ports and meshes under magnification for corrosion, lint, or adhesive from a prior repair.
  • Check the mic flex and its connector for bent pins, tears, or unseated connections.
  • Look for liquid damage indicators and corrosion around the charging port board, where the primary mic often lives.
  • On devices where the mic sits on the charging port flex, test with a known-good flex before condemning the board.

Swap in a known-good mic or flex and retest. If audio returns, you have your answer.

When It's Board-Level

If a known-good mic still produces silence, the fault is likely in the audio codec, a filter component, or a trace. That is microsoldering territory. Be honest with the customer about the added cost and turnaround, and get approval before proceeding.

Quote, Repair, and Verify

Once you know the cause, quote the real fix — mesh cleaning, flex replacement, port board, or board-level repair — with a clear price and timeline. After the repair, verify every path: earpiece call, speakerphone call, voice memo, and video recording. Test in both directions so the customer's caller can hear them and they can hear the caller.

Close the Loop in Your Shop Software

A microphone ticket touches intake notes, diagnosis, parts, quote approval, and final testing. Keeping all of it on one ticket — with photos of the blocked port or failed flex — protects you if the customer returns with the same complaint. RagoxCell keeps diagnosis notes, quotes, parts, and test results on a single repair record so nothing gets lost between the front desk and the bench.

Quick Reference Checklist

  • Ask which mic fails and when it started.
  • Clean the mesh and test with a known-good recorder.
  • Remove accessories and check permissions.
  • Isolate primary vs. secondary mic.
  • Inspect flex, connector, and port board for corrosion.
  • Swap a known-good part before quoting board-level work.
  • Verify all audio paths before pickup.
