How to Handle a Phone with a Broken Speaker: Step-by-Step Diagnosis for Repair Shops

A customer walks in saying "I can't hear anyone on calls, but they can hear me." That single sentence points to a speaker problem, not a mic problem — and sorting those two apart fast is what keeps your bench moving. Here's a practical diagnostic flow for speaker faults on iPhone and Android devices.

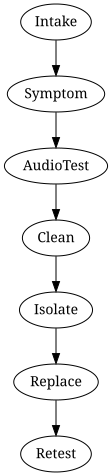

Process overview

Confirm What the Customer Actually Means

"No sound" means different things to different people. Before you open anything, pin down the symptom:

• Earpiece only — they hear nothing on a normal call, but speakerphone works.
• Loudspeaker only — calls are fine, but music, videos, and ringtones are silent.
• Both — nothing plays anywhere, which usually points upstream of the speaker itself.
• Distorted or crackly — audio plays but sounds blown, buzzy, or intermittent.

Write the answer on the ticket. It determines which of the next steps you run first.

Run the Built-In Audio Tests First

Both iOS and Android have hidden audio diagnostics that take under two minutes:

• On iPhone, use the built-in hardware test or a trusted audio test app to play a tone through the earpiece, then the loudspeaker, then the earpiece again.
• On Android, dial the manufacturer's diagnostic code (varies by brand) or use a test app that cycles each output channel.
• Play a known-good audio file at full volume and listen for buzzing, clipping, or dropouts.

If one channel is clean and the other is dead, the fault is almost certainly the speaker module or its connection — not the logic board.

Check the Simple Causes Before the Bench

A surprising share of "broken speaker" tickets are not hardware failures at all:

• Debris in the speaker mesh. Pocket lint, dust, and adhesive residue block output. A soft brush and low-pressure air often restore full volume.
• A case or screen protector covering the earpiece slot.
• Bluetooth still connected to a car kit or earbuds, routing audio away from the phone.
• Software volume limits or accessibility settings capping output.
• A stuck audio route after an update — a restart clears it.

Document what you tried. If cleaning fixes it, you've saved the customer a repair and earned trust.

Isolate Hardware from Software

If cleaning and settings don't help, split the problem:

1. Boot into safe mode (Android) or test after a fresh restart (iPhone) to rule out third-party apps hijacking the audio session.
2. Test with headphones and Bluetooth. If audio works over both, the internal speaker path is the failure point.
3. Check for recent liquid exposure. Corrosion on the speaker contacts mimics a dead speaker. Look for residue on the mesh and around the frame.
4. Inspect the speaker flex and connector. A partially seated or torn flex produces exactly the intermittent, crackly behavior customers describe.

Decide: Clean, Replace, or Escalate

Once you've isolated the fault, the path is usually clear:

• Debris or blockage → clean and retest. No parts needed.
• Dead or distorted speaker with a clean connector → replace the speaker module. This is a fast, high-margin repair on most models.
• Both channels dead, or audio fails after replacement → the fault is likely on the audio IC or board level. Quote accordingly and set expectations before you commit.

Always retest the earpiece, loudspeaker, and microphone after reassembly, and log the result on the ticket so the next technician has a record.

Keep the Workflow Consistent

Speaker jobs are quick, which makes them easy to mishandle when the shop is busy. A consistent intake note, a diagnostic checklist, and a clear quote approval step prevent the two most common problems: doing a board-level repair when a module swap would have fixed it, and replacing a part the customer never approved.

Running intake, diagnosis, quotes, and payment in one system means the symptom notes, the parts used, and the customer's approval all live on the same ticket — so nothing gets lost between the front counter and the bench.

---
