How to Handle a Phone That Won't Turn On: Step-by-Step Diagnosis for Repair Shops

A phone that won't turn on is one of the most common walk-in repairs — and one of the easiest to misdiagnose. This guide walks you through a repeatable intake-to-quote process so you can tell a dead battery apart from a dead board before you promise anything to the customer.

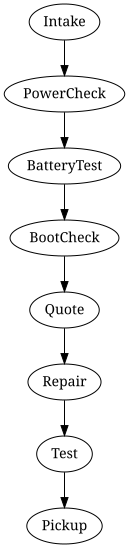

Process overview

Why "Won't Turn On" Is a Diagnosis, Not a Repair

Customers describe every black screen the same way, but the underlying causes range from a fully drained battery to a shorted logic board. If you quote a screen replacement before you've confirmed power delivery, you'll eat the cost of the wrong part and lose the customer's trust.

Treat "won't turn on" as a symptom category. Your job at intake is to narrow it down to one of four buckets:

• Power source problem — bad cable, bad charger, clogged or damaged charging port
• Battery problem — deep discharge, failed cell, swollen pack
• Display problem — the phone is actually booting but the screen stays dark
• Board-level problem — no power draw at all, or a short that trips the charger

Step 1: Document the Device at Intake

Before you touch anything, record the model, IMEI or serial, cosmetic condition, and whether the customer reports any recent liquid exposure or drop. Photograph the device from all sides. This protects you if the customer later claims the phone had no scratches when it came in.

Ask three questions that save time later:

1. When did it last work, and what happened right before it stopped?
2. Was it charging, in a pocket, or in water?
3. Has anyone else opened it already?

That third question matters most. A device that's been opened elsewhere may have missing screws, disconnected flex cables, or a damaged connector — all of which change your diagnosis.

Step 2: Verify the Power Source First

Rule out the cheap stuff before you open the phone.

• Swap in a known-good cable and charger, and try a different wall outlet.
• Check the charging port for lint, bent pins, or corrosion under good light.
• Watch for any sign of life: vibration, boot sound, heat near the camera, or a faint backlight glow.
• Try a forced restart combination for that model — many "dead" phones are just frozen.

If you get a vibration or sound but no image, you're likely in the display bucket, not the power bucket. That single observation can change the quote by a large margin.

Step 3: Test the Battery and Power Draw

Connect the device to a USB power meter or your bench supply and observe the current draw.

• No draw at all usually points to the port, the charging IC, or a board-level fault.
• A brief spike then nothing often means the board is trying to boot and shutting down — frequently a battery or short issue.
• Steady low draw with no boot can indicate a deeply discharged battery that needs a bench charge before it will respond.

If the battery reads well below its rated voltage, charge it externally on a bench supply and retry. A battery that won't hold a charge after that is a straightforward replacement.

Step 4: Separate Display Faults from Boot Faults

Before quoting a screen, confirm the phone is actually booting. Connect it to a computer and see whether it's detected, or listen for the boot chime. If the device is detected but the screen is black, you're looking at a display or backlight issue rather than a dead board.

This is also where you check for a swollen battery — a lifted screen or a bulging frame is a safety issue, not just a repair. Isolate the device and handle it carefully.

Step 5: Quote in Tiers, Not Guesses

Give the customer a clear, tiered explanation:

• Tier 1: power source or battery — fast, inexpensive, high success rate
• Tier 2: display assembly — moderate cost, predictable outcome
• Tier 3: board-level diagnosis — requires bench time, quote after diagnosis

Telling a customer "I'll know more after I open it" is honest. Promising a fixed price on an unknown fault is not.

Step 6: Log Everything in Your Repair System

Every step above produces data you'll want later: intake photos, the power draw reading, the tier you quoted, and the parts you used. When that information lives in a ticket instead of a notebook, you can follow up on approvals, send a quote the customer can accept online, and keep the repair moving without chasing texts.

A consistent won't-turn-on workflow also makes training easier. A new technician can follow the same six steps and reach the same conclusion you would.

Quick Reference Checklist

• Document model, IMEI, condition, and photos at intake
• Ask what happened right before the failure
• Test cable, charger, outlet, and port
• Check for vibration, sound, heat, or backlight
• Measure power draw with a meter or bench supply
• Confirm whether the device boots before quoting a screen
• Quote in tiers and get approval in writing
• Log the diagnosis and parts in your repair ticket

Run this sequence on every dead device and you'll stop guessing, stop eating wrong-part costs, and start closing more of these jobs with confidence.

---
