How to Handle a Phone with a Broken SIM Tray or SIM Not Detected: Diagnosis Guide for Repair Shops

A customer walks in with a phone that says "No SIM" or won't read their card at all, and the first question is always whether it's the card, the tray, or the board. This guide walks through a repeatable intake-to-quote process so your techs diagnose SIM faults the same way every time.

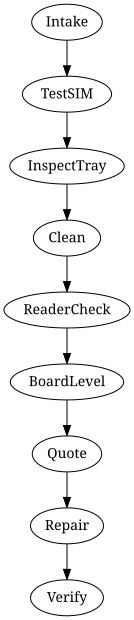

Process overview

Why SIM faults are worth taking seriously

SIM-related complaints look simple, but they hide three very different jobs: a five-minute tray swap, a mid-tier board repair, or a no-fix situation the customer needs to hear about honestly. If your shop treats every "No SIM" ticket as a quick tray replacement, you'll eat the cost on the ones that turn out to be board-level. Standardizing the workflow protects your margin and your reputation.

Step 1: Intake and customer interview

Before the phone goes to the bench, capture the details that narrow the diagnosis:

• Did the phone work with this SIM before, or is the card new?
• Did the problem start after a drop, a case change, or a repair at another shop?
• Is the carrier the same, or did they recently switch?
• Does the phone ever see the SIM briefly, or never at all?
• Has the device been wet or exposed to moisture?

Write the answers on the ticket. "Intermittent" and "never" point to different causes, and you'll want that detail if the customer disputes the diagnosis later.

Step 2: Rule out the easy causes first

Always start with the cheapest, most reversible checks:

1. Test with a known-good SIM from your shop's test kit.
2. Test the customer's SIM in a known-good phone.
3. Inspect the tray and the card for bent pins, scratches, or a trimmed adapter.
4. Clean the contacts with isopropyl alcohol and reseat the card.
5. Check for a carrier lock or an eSIM profile that's overriding the physical SIM.

If the customer's SIM fails in your test phone, the card is the problem and the repair is a carrier visit, not a bench job. Say so and don't charge for a repair you didn't do.

Step 3: Inspect the tray and reader

If the card is fine, move to the hardware:

• Tray damage — bent trays, cracked plastic, or a missing gasket are common after drops. A replacement tray is a quick, low-risk fix.
• Reader pins — look for bent or recessed contact pins under magnification. Pins can sometimes be re-seated, but a damaged reader usually means a daughterboard or connector replacement.
• Water exposure — corrosion around the SIM reader is a strong signal of liquid damage. Treat it as a liquid-damage ticket, not a SIM ticket.

Step 4: Decide when it's board-level

If the tray, card, and reader all check out but the phone still reports no SIM, you're likely looking at the SIM controller circuit or a related line on the main board. At that point:

• Be honest with the customer that this is a board-level diagnosis, not a parts swap.
• Quote a diagnostic fee before opening the board, and explain the possible outcomes.
• If your shop doesn't do micro-soldering, refer it out rather than guessing.

Step 5: Quote, document, and set expectations

Give the customer a clear range with the variables spelled out: tray replacement is the low end, reader or board work is the high end, and "no fix" is a real possibility. Note the IMEI, the SIM status you observed, and the tests you ran on the ticket so any follow-up tech can pick up where you left off.

Common mistakes that cost shops money

• Replacing a tray before testing the customer's SIM in another phone.
• Skipping the water-damage question and finding corrosion after the quote is signed.
• Promising a fix on a board-level fault without a diagnostic fee.
• Failing to document intermittent behavior, then losing a chargeback dispute.

A tight SIM workflow is a small thing that adds up: fewer comebacks, cleaner quotes, and tickets that hold up if a customer pushes back.

---
